Scr7是DNA连接酶IV的抑制剂,最初被认为是一种抗癌剂。
Scr7靶向DNA连接酶IV的DNA结合域,减少其与双链断裂(DSBs)的亲和性并抑制其功能。Scr7也可以抑制DNA连接酶III。用doxycycline处理细胞诱导Cas9的表达,同时用Scr7处理24 h可以使细胞能够进入S/G2期,这对于同源定向修复(HDR)是必须的。用Scr7处理小鼠会影响淋巴细胞的发育,这是由于DNA连接酶IV在V(D)J重组期间通过C-NHEJ16对编码端的接合作用。由于Scr7的非共价结合,淋巴细胞发育的缺陷是暂时并可逆的。在培养的细胞和小鼠中,Scr7通过瞬时阻断NHEJ,从而增加HDR的发生频率,产生精确的基因组编辑。
参考文献:
[1]. Srivastava M, Nambiar M, Sharma S et al. An inhibitor of nonhomologous end-joining abrogates double-strand break repair and impedes cancer progression. Cell. 2012 Dec 21;151(7):1474-87. doi: 10.1016/j.cell.2012.11.054.
[2]. Maruyama T, Dougan SK, Truttmann MC et al.Increasing the efficiency of precise genome editing with CRISPR-Cas9 by inhibition of nonhomologous end joining. Nat Biotechnol. 2015 Mar 23. doi: 10.1038/nbt.3190. [Epub ahead of print]
- 1. Dennis Klug, Katharina Arnold, et al. "A toolbox of engineered mosquito lines to study salivary gland biology and malaria transmission." PLoS Pathog. 2022 Oct 12;18(10):e1010881. PMID: 36223382

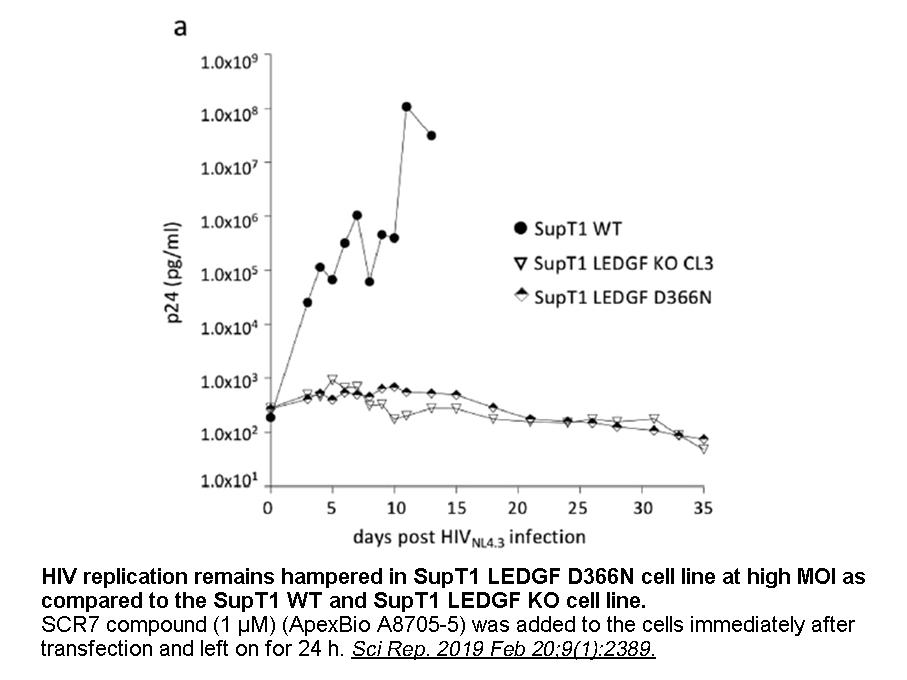

- 2. Lampi Y, Van Looveren D, et al. "Targeted editing of the PSIP1 gene encoding LEDGF/p75 protects cells against HIV infection." Sci Rep. 2019 Feb 20; 9 (1): 2389. PMID: 30787394

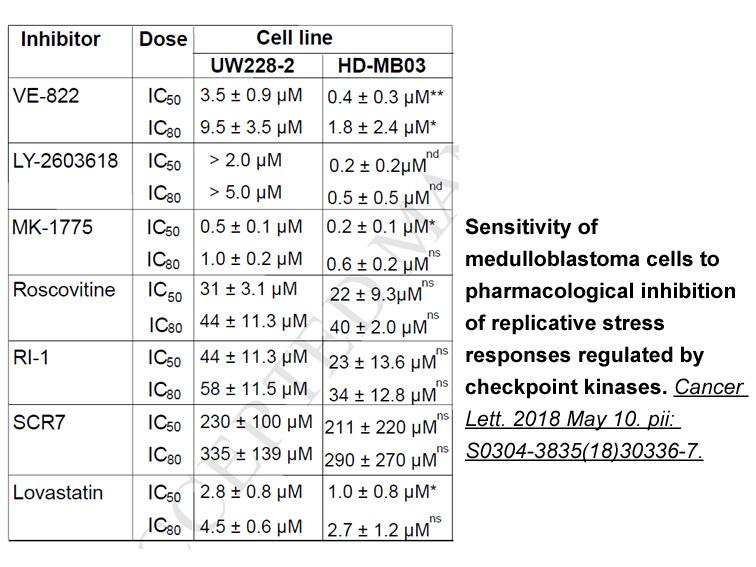

- 3. Krüger K, Geist K, et al. "Multiple DNA damage-dependent and DNA damage-independent stress responses define the outcome of ATR/Chk1 targeting in medulloblastoma cells." Cancer Lett. 2018 May 16; 430: 34-46. PMID: 29753759

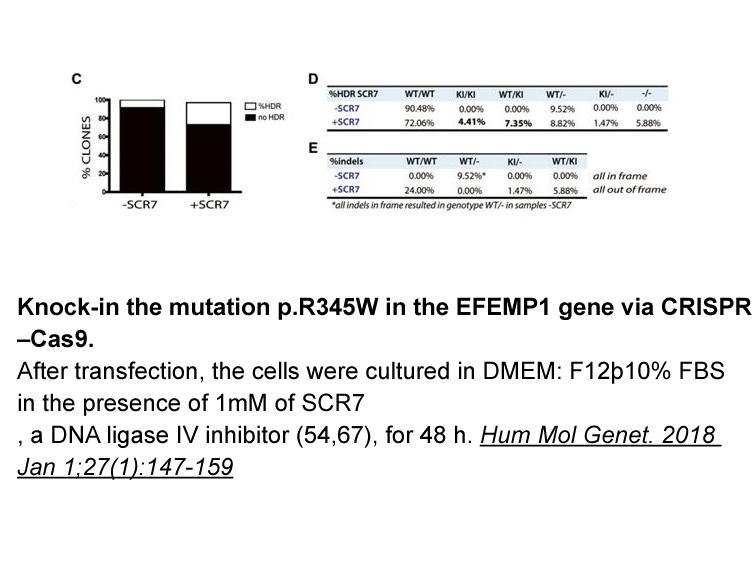

- 4. Fernandez-Godino R, Bujakowska KM, Pierce EA. "Changes in extracellular matrix cause RPE cells to make basal deposits and activate the alternative complement pathway." Hum Mol Genet. 2018 Jan 1; 27 (1): 147-159. PMID: 29095988

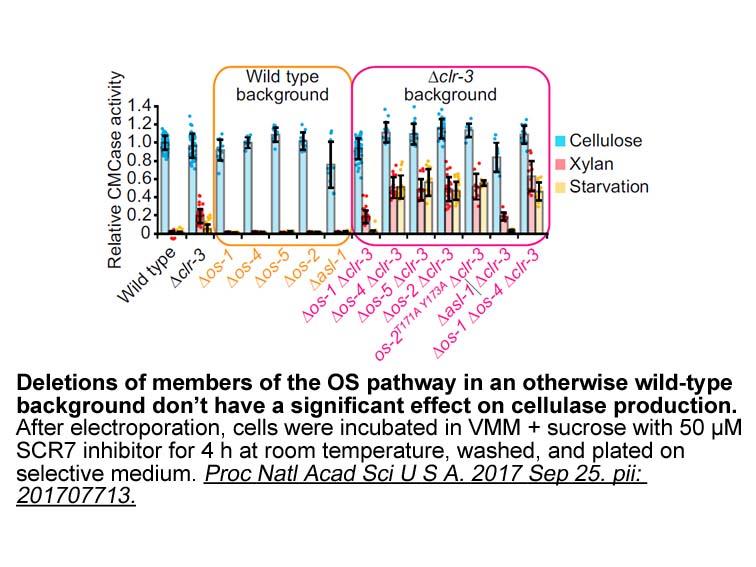

- 5. Huberman LB, Coradetti ST, Glass NL. "Network of nutrient-sensing pathways and a conserved kinase cascade integrate osmolarity and carbon sensing in Neurospora crassa." Proc Natl Acad Sci U S A. 2017 Oct 10; 114 (41): E8665-E8674. PMID: 28973881

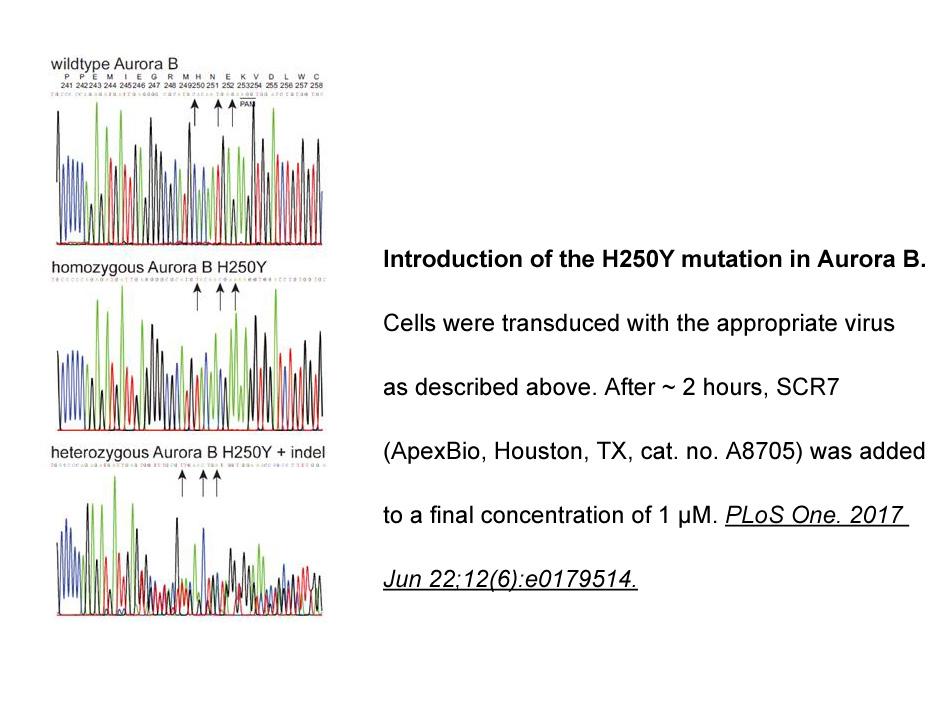

- 6. Hindriksen S, Bramer AJ, et al. "Baculoviral delivery of CRISPR/Cas9 facilitates efficient genome editing in human cells." PLoS One. 2017 Jun 22; 12 (6): e0179514. PMID: 28640891

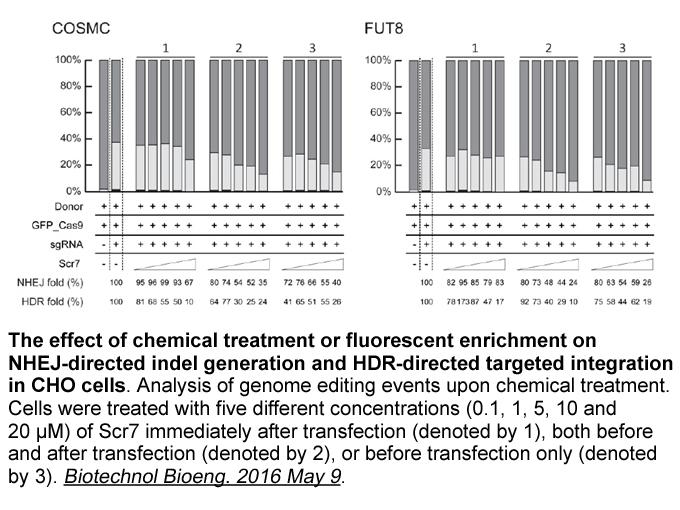

- 7. Lee JS, Grav LM, et al. "Accelerated homology-directed targeted integration of transgenes in Chinese hamster ovary cells via CRISPR/Cas9 and fluorescent enrichment." Biotechnol Bioeng. 2016 May 9. PMID: 27159230
Storage | Store at -20°C |
M.Wt | 334.39 |
Cas No. | 1533426-72-0 |
Formula | C18H14N4OS |
Solubility | insoluble in H2O; ≥16.72 mg/mL in DMSO; ≥2.6 mg/mL in EtOH with ultrasonic |
Chemical Name | 5,6-bis((E)-benzylideneamino)-2-thioxo-2,3-dihydropyrimidin-4(1H)-one |
SDF | Download SDF |
Canonical SMILES | S=C(NC(/N=C/C1=CC=CC=C1)=C2/N=C/C3=CC=CC=C3)NC2=O |
运输条件 | 蓝冰运输或根据您的需求运输。 |
一般建议 | 不同厂家不同批次产品溶解度各有差异,仅做参考。若实验所需浓度过大至产品溶解极限,请添加助溶剂助溶或自行调整浓度。溶液形式一般不宜长期储存,请尽快用完。 |
细胞实验: [1] | |
细胞系 |
上皮(A549)和黑色素瘤(MelJuSo)细胞系衍生物 |
制备方法 |
该化合物在DMSO中的溶解度大于10 mM,若配制更高浓度的溶液,一般步骤如下:请将试管置于37℃加热10分钟和/或将其置于超声波浴中震荡一段时间。原液于-20℃可放置数月。 |
反应条件 |
24 小时, 37℃ |
实验结果 |
Scr7增加细胞系中插入诱变的效率。在A549细胞中,相较于未处理的对照组,0.01 μM Scr7将靶位点的插入效率提高约三倍。在Scr7处理的MelJuSo细胞中,插入效率也以剂量依赖性方式增强高达19倍。 |
动物实验: [1] | |
动物模型 |
Kell-LPETG小鼠 |
给药剂量 |
在原核阶段将CRISPR组分混合物(Cas9 mRNA、sgRNA和靶向模板)和10 mM的Scr7 NHEJ抑制剂(至终浓度为1 mM)注射到细胞质中。将注射的受精卵在2-细胞阶段转移到假孕妇中。 |
实验结果 |
共注射Scr7增加了在小鼠胚胎中精确基因组编辑的效率。与未注射Scr7的胚泡相比,使用Scr7共注射的插入效率显著增高(P = 0.0012)。与未注射Scr7的E10胚胎相比,Scr7共注射的E10胚胎中的插入效率也显著增高(P = 0.003)。 |
注意事项 |
请于室内测试所有化合物的溶解度。虽然化合物的实际溶解度可能与其理论值略有不同,但仍处于实验系统误差的允许范围内。 |
References: 1. Maruyama T, Dougan SK, Truttmann MC et al. Increasing the efficiency of precise genome editing with CRISPR-Cas9 by inhibition of nonhomologous end joining. Nat Biotechnol. 2015 May;33(5):538-42. |
质量控制和MSDS
- 批次:
